Different versions of the Scopemeter offer different types of outputs to the program The type of output from your instrument depends on the current firmware and instrument model.
Color screen capture Show me
Firmware version V7.0 and higher
Gray scale screen capture Show me
Firmware version V5.0x and V6.xx
Monochrome screen capture Show me
Firmware version earlier than V5.0
See also: Show me
How to Get the Latest Firmware

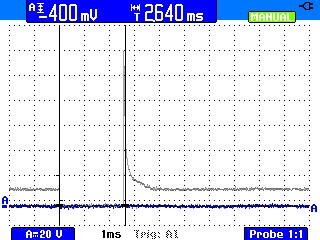

Firmware version V7.0 and higher
Full color
Firmware version V5.0x and V6.xx
Gray scale
Firmware version earlier than V5.0
Monochrome
Firmware version earlier than V5.0
Monochrome - Note that the waveform is composed of dots and not a line.
